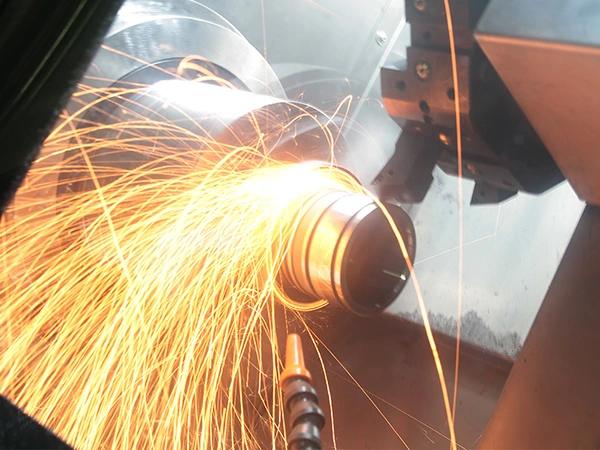

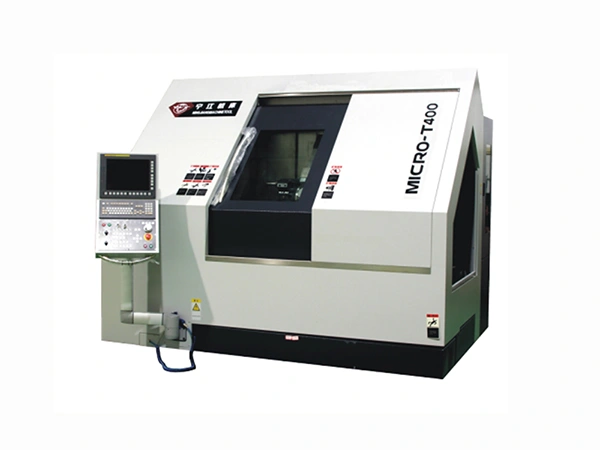

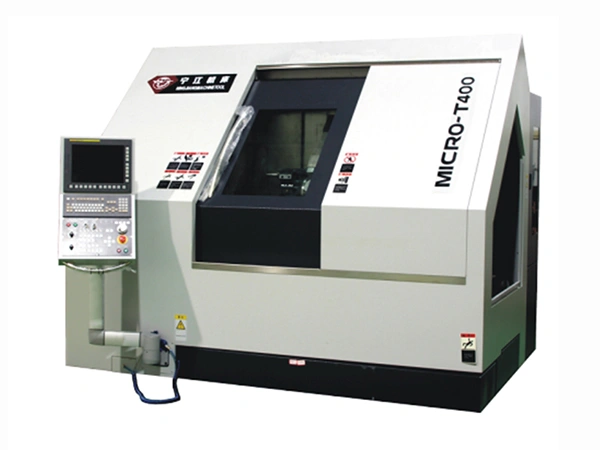

The MICRO-T400 high precision CNC lathe is built as a single-spindle mineral-cast slant-bed structure with a compact layout. It integrates static-pressure built-in spindle technology, hydrostatic guideways, a hydrostatic tailstock and high-precision drive systems (ultra-precision ball screws or linear motors), supported by vibration- and deformation-resistant bed construction. The ultra-precision CNC turning machines hardened materials from 58-68 HRC and serves applications in aerospace, optics, bearings, ball screws, hydraulics, automotive and precision mould manufacturing.
| Max. swing over bed (mm) | 400 |
| Max. turning diameter (disc workpieces) (mm) | 300 |
| Max. turning diameter (shaft workpieces) (mm) | 150 |
| Max. turning length (mm) | 320 |
| Max. Workpiece Diameter weight (including fixture) (kg) | 80 |
| Chuck diameter (mm) | 200 (8 inch) |
| Spindle power (kW) | 18.4 |
| Spindle speed range (r/min) | 100–4000 |
| Spindle runout (μm) | < 0.2(0.1) |
| Rated torque (N.m) | 42–47 |
| X-axis travel (mm) | 200 |
| Z-axis travel (mm) | 350 |
| X/Z-axis positioning accuracy (μm) | 3 (optional 1) |
| X/Z-axis repeatability (μm) | 1.5 (optional 0.2) |
| CNC system | FANUC Oi-TF Plus (optional GSK) |
