Gang Tool Type CNC Lathe 20 mm | CNC Turning Machine

CNC Lathes

CMK0220/1 & CMK0232/1

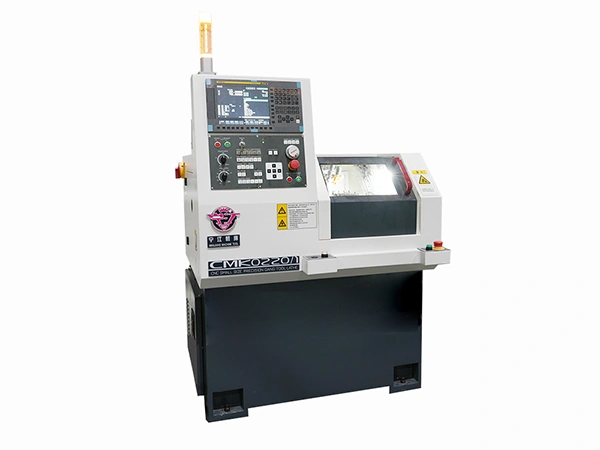

Gang Tool Type CNC Lathe

Compact CNC turning machine with gang tooling for precision machining of bars with a maximum diameter of 20mm

Request a Quote

Features

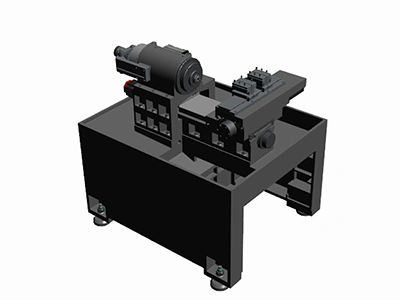

The gang too type CNC lathe base is made from a high-strength one-piece casting that provides excellent rigidity and vibration resistance.
Its hand-scraped dovetail structure is made from wear-resistant cast iron, offering strong stiffness and stable support.

A high-precision built-in motor spindle delivers high spindle speeds, while linear axes with 15 m/min rapid traverse reduce idle time.
Capable of heavy cutting and hard turning with stable accuracy.

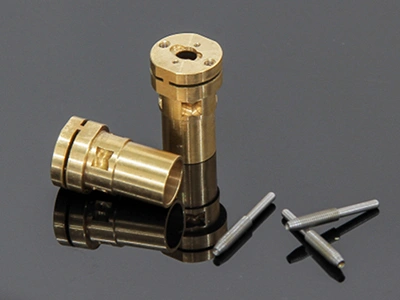

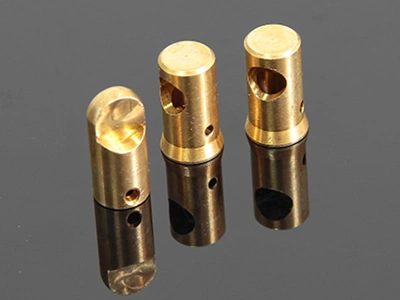

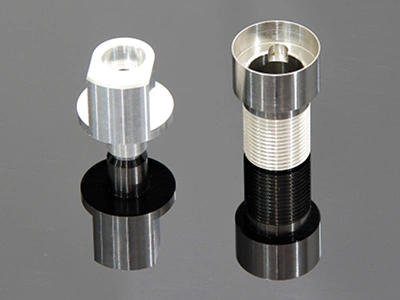

Sample Display

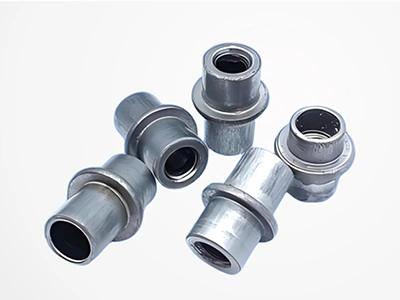

Sleeve bearing components

Technical Specifications

Model	CMK0220/1	CMK0232/1
CNC system	Syntec 22TB (optional FANUC)
Max. bar diameter (mm)	Ø20	Ø32
Max. bar diameter	100
Max. Workpiece Diameter length (mm)	100
Spindle through-hole diameter	Ø21	Ø33
Spindle motor power (kW)	4.4	3.7/5.5
Max. spindle speed (r/min)	8000	6000
Repeatability of all axes (mm)	0.002
Radial runout of push-guide locating hole (mm)	0.002
Rapid traverse (m/min)	15
Machine weight (kg)	Approx. 1000	Approx. 2000
Overall dimensions (L×W×H) (mm)	1100×1200×1500	1500×1600×1700

Interested in Our CNC Machines?

Contact us today and our experts will help you evaluate your machining requirements and recommend the most suitable CNC machine and configuration.
