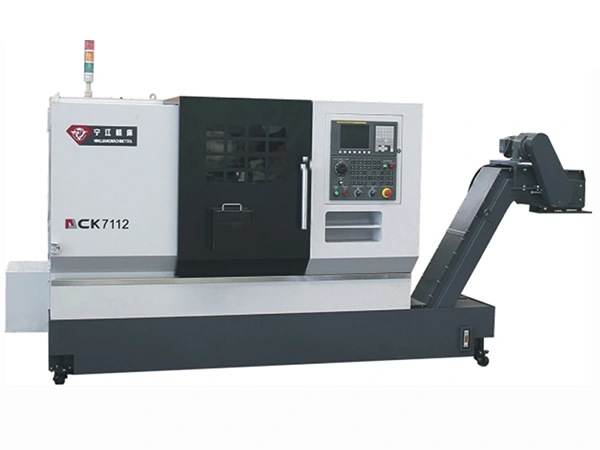

This is a high-efficiency, high-precision two-axis horizontal CNC lathe designed with an advanced structure and stable machining performance. It delivers excellent accuracy, a strong price-performance ratio and user-friendly operation. It handles a wide range of machining tasks for disc and shaft components, including internal and external turning, taper turning, arc profiling, straight and taper threading, grooving, drilling, enlarging and reaming. Its stable accuracy makes it well suited for complex geometries and for small to medium production batches that require consistent dimensional control.
| Machining range | Max. swing over protective cover (mm) | 400 |
| Max. swing over saddle (mm) | 260 | |
| Max. machining diameter (shaft workpieces) (mm) | 120 | |
| Max. machining diameter (disc workpieces) (mm) | 320 | |
| Min. machining diameter (mm) | 7 | |
| Max. machining length (mm) | 400 | |
| Spindle | Spindle nose type | A2-5 |
| Spindle taper | Morse taper #6 | |
| Spindle through-hole diameter (mm) | 56 | |
| Front spindle bearing diameter (mm) | 90 | |
| Spindle speed range (r/min) | 50–5000 | |
| Tailstock | Drive type | Hydraulic |
| Quill stroke (mm) | 80 | |
| Quill taper | Morse taper #4 | |
| Axes | X-axis travel (mm) | 150 |
| Z-axis travel (mm) | 400 | |
| X-axis rapid traverse (m/min) | 16 | |
| Z-axis rapid traverse (m/min) | 16 | |
| Spindle motor | Torque (N.m) | 35.8 |
| Power (kW) | 5.5/7.5 | |
| X-axis motor | Torque (N.m) | 7 |
| Power (kW) | 1.2 | |
| Z-axis motor | Torque (N.m) | 7 |
| Power (kW) | 1.2 | |
| Tooling | Number of tools | 8 |
| Coolant pump motor | Power (kW) | 1.5 |
| Overall dimensions (L×W×H) (mm) | 2250×1550×1500 (with chip tray) | |
| Machine weight (net/gross) (kg) | 2500/3000 | |
