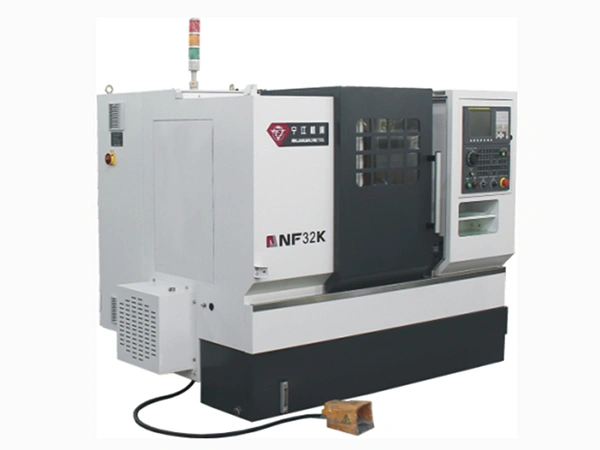

This is a high-efficiency, high-precision two-axis horizontal CNC lathe designed for complex turning tasks on disc parts and short shaft components. It supports internal and external cylindrical turning, taper turning, step and spherical surfaces, rotational contours, internal and external grooving, drilling and tapping. The gang-tool layout is optimized for parts that do not require tailstock support, making it ideal for disc components and short shafts.
| Max. swing over bed (mm) | 360 |
| Max. swing over carriage (mm) | 100 |
| Z-axis guideway span (mm) | 380 |
| X-axis guideway span (mm) | 200 |
| Spindle nose type | A2-5 |
| Spindle bore diameter (mm) | 56 |
| Front spindle bearing inner diameter (mm) | 90 |
| Max. bar diameter (mm) | 42 |
| Spindle speed (r/min) | 100-5000 |
| X-axis travel (mm) | 340 |
| Z-axis travel (mm) | 260 |
| X-axis rapid traverse (m/min) | 13 |
| Z-axis rapid traverse (m/min) | 15 |
| Tooling type | Gang tooling |
| OD turning tool shank size (mm) | 16×16 |
| Max. boring bar diameter (mm) | 20 |
| Machine dimensions (L×W×H) (mm) | 2050×1450×1550 |
| Machine weight (net/gross) (kg) | 2200/2500 |
