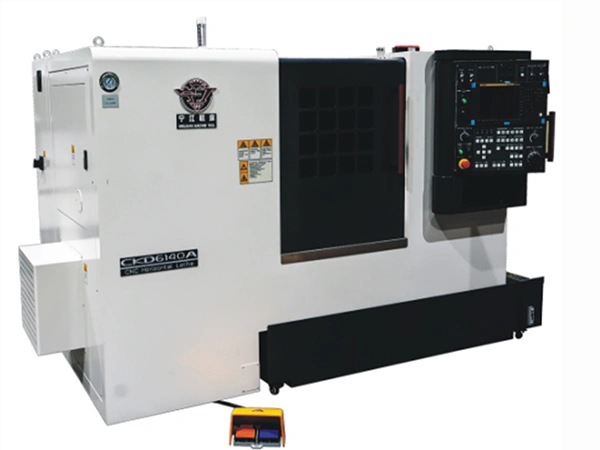

CKD6140A Horizontal CNC Lathe

CKD6140A

Horizontal CNC Lathe

This is a high-efficiency, high-precision two-axis horizontal CNC lathe with a rigid 45° slant-bed structure. The one-piece cast-iron bed uses low-stress, high-rigidity material to ensure stability. Precision linear guideways and ball screws deliver accurate positioning, fast feed rates and long-term accuracy retention. The horizontal CNC lathe is equipped with an 8-station hydraulic servo turret, an 8-inch power chuck and a hydraulic tailstock, allowing it to handle complex multi-step turning tasks and automated machining workflows. It is suitable for a wide range of turning operations on disc and shaft components, including external turning, facing, taper turning, threading and arc profiling.

Request a Quote

Features

The high-strength one-piece cast-iron base provides strong rigidity with excellent vibration damping and minimal deformation.
The 45° slant-bed design improves chip removal efficiency and operator accessibility, supporting smooth machining operations.
X/Z axes use precision linear guideways and ball screws from specialized manufacturers, ensuring high accuracy, rigidity and fast axis movement.
Standard Taiwan-made 8-station hydraulic servo turret enables fast, accurate tool indexing and continuous multi-process machining.
The 8-inch power chuck and rotary hydraulic cylinder ensure reliable and stable workpiece clamping.
The hydraulic tailstock supports Z-axis driven movement and programmable sleeve travel, with both manual and program-controlled modes.
Full-enclosure guarding keeps oil, coolant and chips contained for clean operation, smooth chip discharge and easy maintenance.
A standard coolant tank collects chips efficiently, and optional accessories can be added to support fully automated machining.

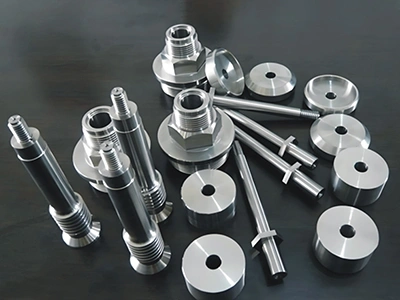

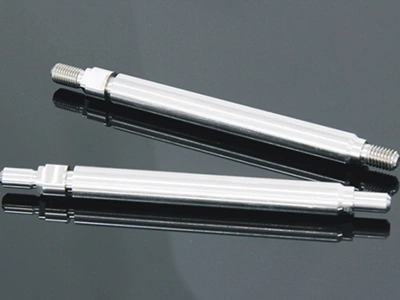

Sample Display

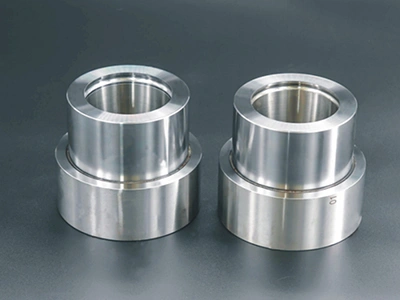

Bushing components

Technical Specifications

Max. swing over bed (mm)		Ø400
Max. machining diameter (mm)	Disc workpieces	Ø360
	Shaft workpieces	Ø200
Max. turning length (mm)		500
Spindle center height (mm)		1000
Spindle speed (r/min)		100–4000
Spindle motor power (kW)		11
Chuck size (inch)		8
Spindle nose type		A2-6
X/Z-axis travel (mm)		200/530
X/Z-axis rapid traverse (m/min)		20/20
Tailstock travel (mm)		380
Tailstock quill stroke (mm)		110
Tailstock quill diameter (mm)		Ø80
Tailstock quill taper (mm)		MS NO.4
Turret stations		12
Turning tool size (mm)		25×25
Max. boring bar diameter (mm)		Ø32
CNC system		FANUC 0i TF Plus
Control mode		Semi-closed loop
Spindle feedback element		Encoder
Linear axis feedback element		Servo motor with built-in encoder
X/Z motor power (kW)		1.2/1.8
Coolant pump motor power (kW)		0.37
Coolant tank capacity (L)		180
Lubrication motor power (kW)		0.025
Lubrication tank capacity (L)		1.8
Hydraulic system pressure (MPa)		4
Hydraulic tank capacity (L)		50
Overall dimensions (L×W×H) (mm)		2820×1500×1700
Machine weight (kg)		3000
