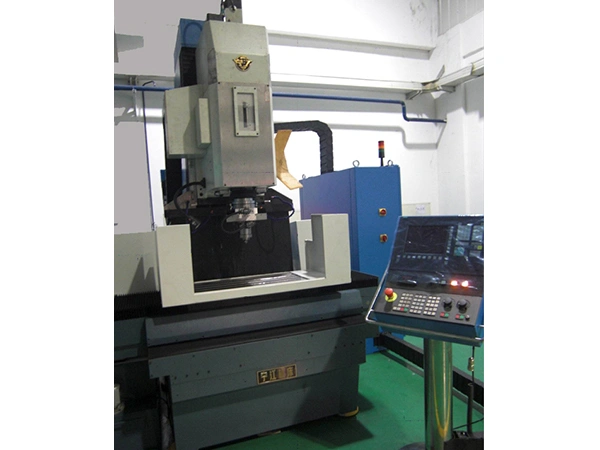

This CNC jig grinder supports continuous-path machining using linear and circular approximation to process hardened templates, mould cavities and punch profiles with arbitrary curve shapes. It also performs high-accuracy point-to-point grinding for hardened coordinate hole systems that require precise hole-spacing control.

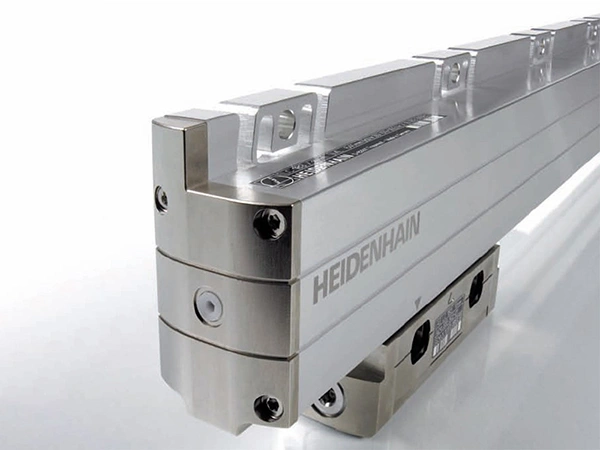

The X and Y axes use absolute linear scales from HEIDENHAIN, delivering stable dynamic performance and reliable high-speed movement.

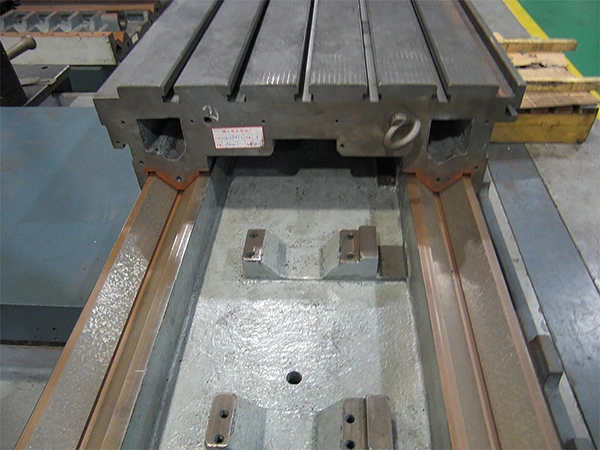

The box-type base is reinforced with internal ribbing to provide high rigidity and structural stability, supporting consistent accuracy during long machining cycles.
| Worktable | Table width (mm) | 450 | |||
| Table length (mm) | 800 | ||||
| Y-axis travel (mm) | 400 | ||||
| X-axis travel (mm) | 600 | ||||
| Max. rapid traverse (mm/min) | 1000 | ||||
| Max. working speed (mm/min) | 250 | ||||
| Max. table load capacity (kg) | 500 | ||||
| X/Y-axis positioning accuracy (ISO standard) (mm) | Bidirectional positioning accuracy | 0.005 | |||
| Repeatability | 0.003 | ||||
| Backlash | 0.003 | ||||
| Grinding Headstock | W-axis travel (mm) | 400 | |||
| Distance from grinding head end face to table surface (MF315) (mm) | Max. | 585 | |||
| Min. | 75 | ||||
| Grinding Wheel | Z-axis reciprocating stroke (mm) | 110 | |||
| Z-axis reciprocating speed (m/min) | 0.01–10 | ||||
| Grinding wheel motor speed (10⁴ r/min) | 0.9–4.5 | ||||
| Planetary spindle speed (r/min) | S-axis | 10–300 | |||
| C-axis | 30 max. | ||||
| Planetary Grinding | Max. planetary grinding bore diameter (MF315) (mm) | Ø220 | |||
| Max. grinding taper (°) | 16 | ||||
| U-axis manual adjustment (mm) | ±30 | ||||
| U-axis CNC feed (mm) | 5.5 | ||||
| Air Supply | Rated compressed air pressure (MPa) | 0.6 | |||
| Rated compressed air flow (L/min) | 120 | ||||
| Power Supply | Total power input (kVA) | 14 | |||
| Machine dimensions (L×W×H) (mm) | 2500×1803×2959 | ||||
| Machine weight (kg) | Approx. 6500 | ||||
Note: Air source requirements based on MF315 grinding head.
