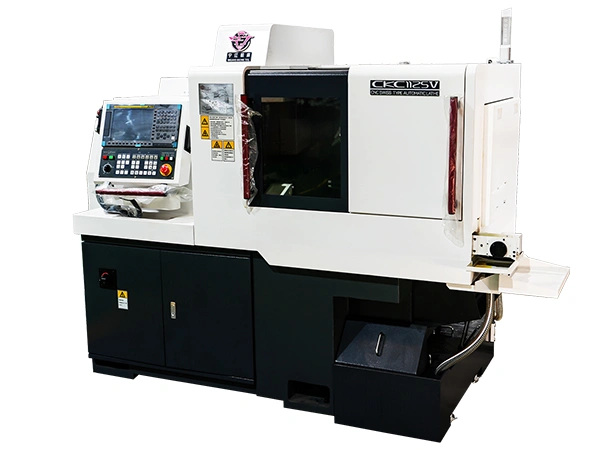

CKC series (TypeV) Swiss-type CNC lathe adopts FANUC 0i-TF plus dual port control system. It is designed for shaft type workpieces used widely in various industries.

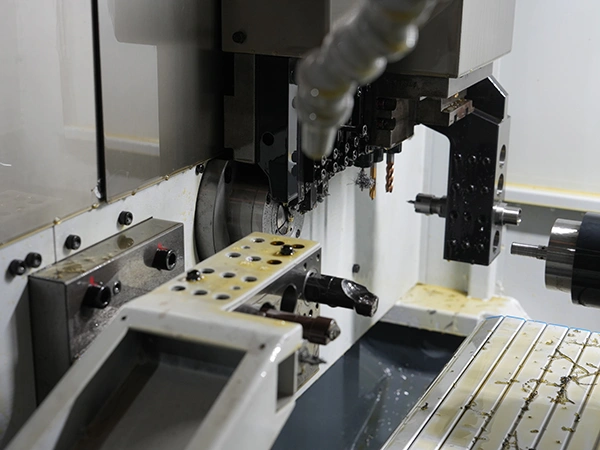

On the main spindle, O.D turning, end-face drilling, tapping, boring, threading, slotting, cross drilling, milling, radial tapping, parting-off operations can be performed. On the sub-spindle, turning, drilling, boring, tapping can be performed. Main spindle and sub-spindle can work simultaneously to shorten the cycle time. Optional automatic bar-feeder is available to realize automatic machining.

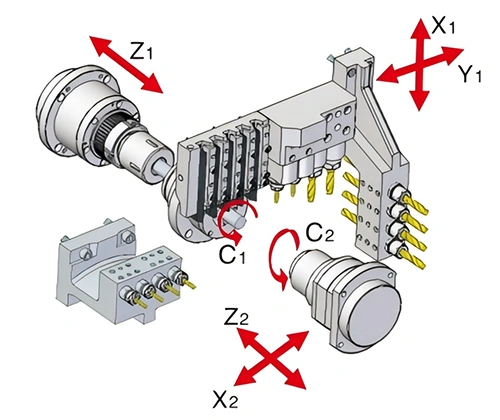

CKC1112VCKC1120V, CKC1125V

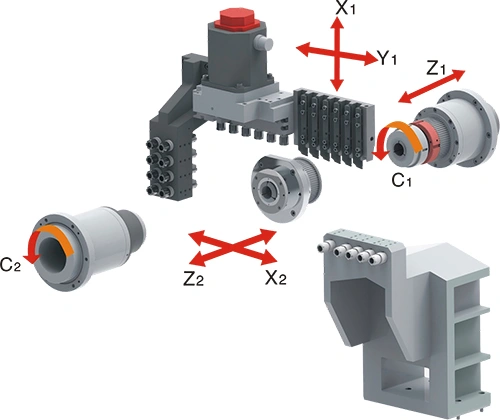

CKC1132V
| Model | | | | |
| CNC system | FANUC | |||
| Max. working diameter (mm) | Ø12 | Ø20 | Ø25 | Ø32 |
| Max. working length (mm) | 200/2.5D (with/without guide bush) | 320/2.5D (with/without guide bush) | ||
| Max. spindle speed (r/min) | 10000 | 8000 | 8000 | 6000 |
| Max. sub-spindle speed (r/min) | 10000 | 8000 | 8000 | 6000 |
| Number of tools (pcs) | 21 (standard) | 31 (standard) | ||
| Spindle motor power (kW) | 2.2/3.7 | 3.7/5.5 | 5.5/7.5 | |
| Sub-spindle motor power (kW) | 2.2/3.7 | 3.7/5.5 | 3.7/5.5 | |
| Repeatability of all axes (mm) | 0.002 | |||
| Radial runout of spindle hole (mm) | 0.004 | |||
| Max. front part-off (mm) | 80 | 150 | ||
| Rapid feed (m/min) | 32 | 30 | ||
| Machine weight (kg) | Approx. 2600 | Approx. 4500 | ||
| Overall dimensions (L×W×H) (mm) | 2590×1330×1830 | 2700×1625×2100 | ||
